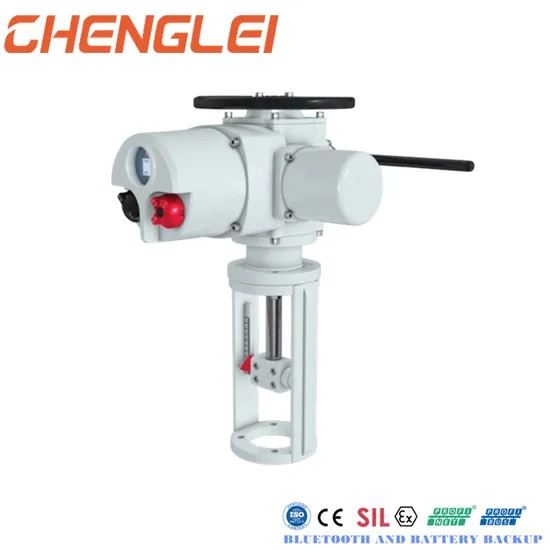

Telescoping Adjustable Rack and Pinion Electric Linear Actuator for Heavy Duty Applications
Model ZXC
Overview
Telescoping Adjustable Rack and Pinion Electric Linear Actuator for Heavy Duty Applications supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: IP Rating IP65; Max Thrust 10000N; Standard Stroke 250mm; Voltage 24VDC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| IP Rating | IP65 |
|---|---|
| Max Thrust | 10000N |
| Standard Stroke | 250mm |
| Voltage | 24VDC |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Rated Frequency | 50HZ/60HZ |
| Linear Stroke | 30mm,60mm,80mm,100mm |
| Motor Duty | S2 10min,15min,30min Or S1/S3/S4/S6 24%,40% |
| Insulation Level | F Level |
| Environmental Temperature | -20~+60 ºC (special Orders -60~+70 ºC) |
| Relative Humidity | ≤ 95% (at+25 ºC) |
| Control methods | On-off or modulating (4-20mA) |
| Protection grade | IP65/IP67/IP68 options |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Anti-corrosion coating | electrostatic powder spraying |
