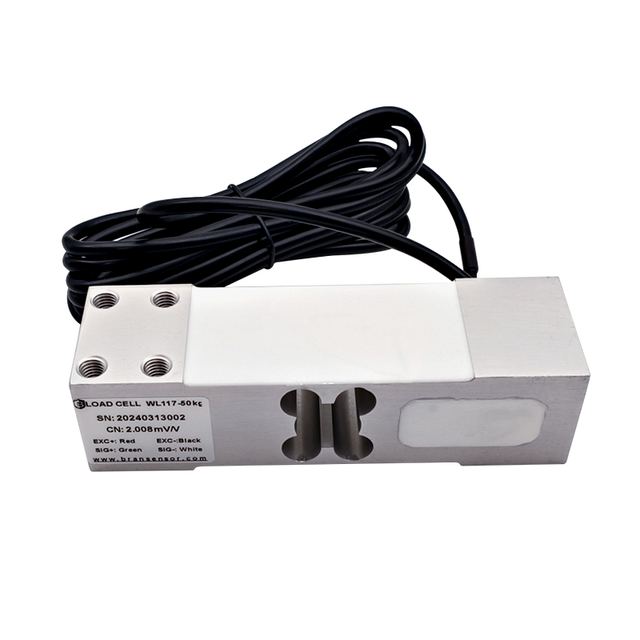

Heavy-Duty Single Point Load Cell for Demanding Applications
Model WL-117
Overview
Heavy-Duty Single Point Load Cell for Demanding Applications, listed under Power Take-Offs for Heavy-Duty Applications by OK Brans Measuring And Controlling Technology Co., Ltd in Hefei, Anhui. The listing gives capacity 50/100/150/200/250/300/400/ 500kg, weight approx. 0.6kg and max.platform size 600mm×600mm.
Technical specifications
| Capacity | 50/100/150/200/250/300/400/ 500kg |
|---|---|
| Weight Approx. | 0.6kg |
| Max.platform Size | 600mm×600mm |
| Combined Error | ±0.015%F.S. |
| Safe Overload | 150%F.S. |
| Protection Class | IP65 (Customizable) |
| Material | Aluminum Aloy |
| Rated output | 2.0±0.05mV/V |
| Accuracy class | C3 |
| Zero balance | ±0.02mV/V |
| Non-linearity | ±0.02%F.S. |
| Hysteresis | ±0.017%F.S. |
| Repeatability | ±0.015%F.S. |
| Temperature effect on sensitivity | ±0.008%F.S./10℃ |
| Temperature effect on zero | ±0.0125%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15VDC |
| Ultimate overload | 200%F.S. |
| IP class | IP65 (Customizable) |
| Cable size | Φ5×3000mm (Customizable) |
| Nominal displacement | 0.6-0.9mm |
