Overview

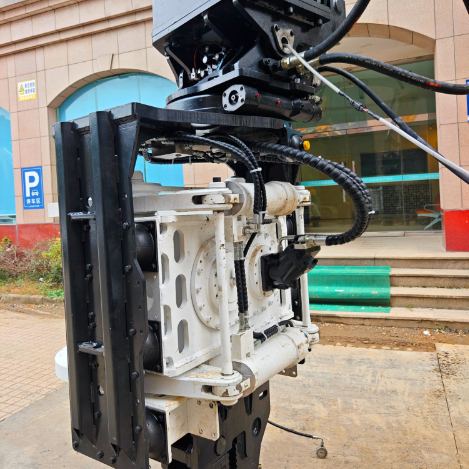

SV300 Side Grip Pile Driver supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Vibrationcontrol Integrated; Frequency 2300~3000 Rpm; Operatingpressure 32 MPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO 9001:2015
Vibrationcontrol	Integrated
Frequency	2300~3000 Rpm
Operatingpressure	32 MPa
Powersource	Hydraulic System
Hammer	3150kg
Maximum Piling	18 Meter
Eccentric moment	5.6 kgm
Centrifugal force	558 kN
Frequency range (adjustable)	2300 – 3000 rpm
Side clamp force	385 kN
Bottom clamp force	490 kN
Operating flow	220 – 280 L/min
Rotation angle	360° continuous
Dimensions (L×W×H)	1343 × 1230 × 2923 mm
Weight (with connector & clamps)	3150 kg
Suitable excavator	25 – 32 tons
Dual pump merging flow range	up to 560 L/min combined
Valve type	Integrated control valve assembly
