Overview

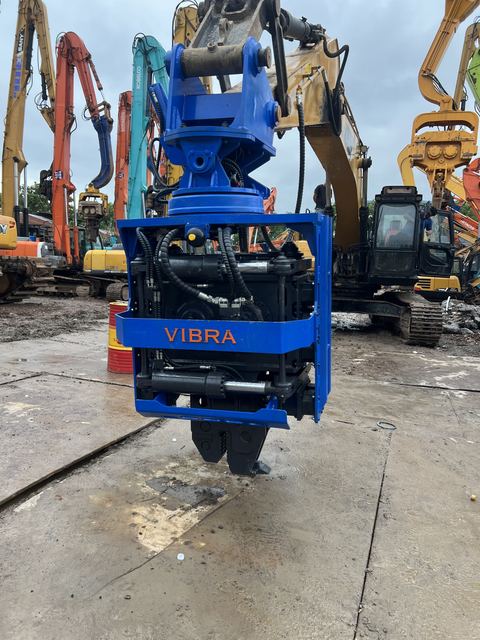

Quick Tool Change System & Dual Pump Flow Merging System supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Model SV-400 Side Grip Pile Driver; Eccentric Moment 6.6 kg·m; Centrifugal Force 656 kN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO 9001:2015
Model	SV-400 Side Grip Pile Driver
Eccentric Moment	6.6 kg·m
Centrifugal Force	656 kN
Frequency Range	2,300 – 5,000 rpm
Side Clamp Force	465 kN
Bottom Clamp Force	520 kN
System Pressure	32 MPa
Required Flow	280 – 360 L/min
Rotation Angle	360° continuous
Tilt Angle	±30° bidirectional
Dimensions (LWH)	1,400 * 1,315 * 3,056 mm
Weight (with connector & clamp)	3,870 kg
Compatible Excavators	32 – 40 tons
