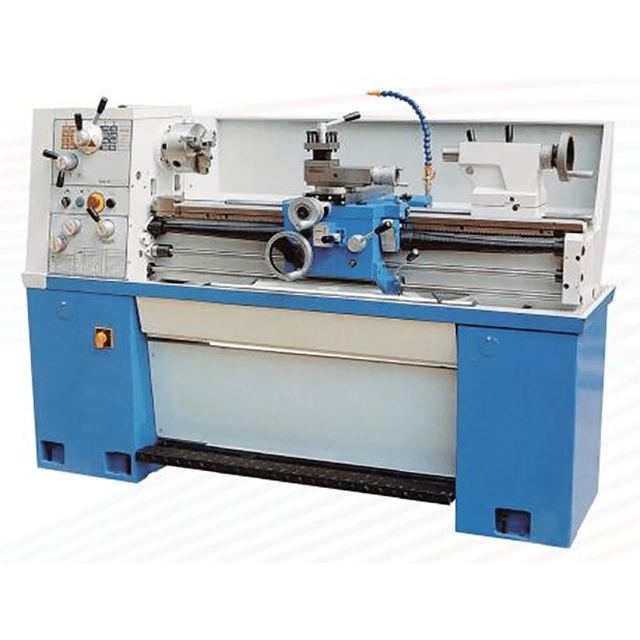

Supply OEM/ODM C6241/2000 China Engine Lathe Machine
Overview
Supply OEM/ODM C6241/2000 China Engine Lathe Machine supplied by Dezhou Premach Machinery Co., Ltd. Listed under Boring Machines. Key published specifications: Swing diameter over bed 356mm (14”); Swing diameter over cross slide 220mm (8-5/8”); Swing diameter over gap 506mm (20”); Valid length of gap 145mm (5-11/16”). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Swing diameter over bed | 356mm (14”) |
|---|---|
| Swing diameter over cross slide | 220mm (8-5/8”) |
| Swing diameter over gap | 506mm (20”) |
| Valid length of gap | 145mm (5-11/16”) |
| Admits between | 1000mm (40”) |
| Width of bed | 206mm (8”) |
| Spindle nose | D1-4 |
| Spindle bore | 38mm (1-1/2”) |
| Taper of spindle bore | MT No.5 |
| Compound rest travel | 95mm (3-3/4”) |
| Cross slide travel | 180mm (7”) |
| Max. section of tool | 16mmx16mm (5/8”x5/8”) |
| Lead screw thread | 8T.P.I. or 4mm |
| Longitudinal feeds range | 0.0012”-0.0294”/rev (inch lathe) or 0.043-0.653mm/rev (Metric lathe) |
| Cross feeds range | 0.0004”-0.01”/rev (inch lathe) or 0.027-0.413mm/rev (Metric lathe) |
| Threads metric pitches | 0.45-7.5mm (Inch lathe) or 0.4-7mm (Metric lathe) |
| Threads inch pitches | 4-112T.P.I. (Inch lathe) or4-56T.P.I. (Metric lathe) |
| Quill diameter | 45mm (1-3/4”) |
| Quill travel | 120mm (4-3/4”) |
| Quill taper | MT No.3 |
| Main motor power(Double speeds) | 1.5/2.4KW(2/3HP) |
| Coolant pump power | 0.04KW |
| Overall dimension (LxWxH) | 1820x740x1250mm |
