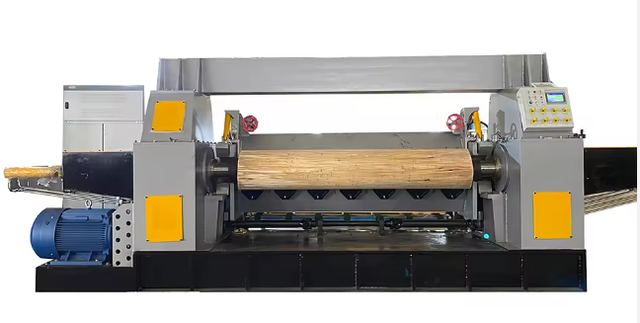

Spindle Veneer Peeling Lathe
Overview
Spindle Veneer Peeling Lathe supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Veneer Thickness (mm) Recommended Speed (m/min); Max. Peeling Diameter Φ1600 mm; Peeling Length 700–1300 mm; Min. Core Diameter after Peeling Φ120 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Veneer Thickness (mm) | Recommended Speed (m/min) |
|---|---|
| Max. Peeling Diameter | Φ1600 mm |
| Peeling Length | 700–1300 mm |
| Min. Core Diameter after Peeling | Φ120 mm |
| Veneer Thickness | 0.5–3.0 mm |
| Overall Dimensions | 4700 × 2200 × 2400 mm |
| Machine Weight | 6500 kg |
| Main Motor | 30 kW × 1 set |
| Clamping Motor | 4 kW × 2 sets (Siemens Beide motors) |
| Rapid Forward/Return Motor | 1.5 kW × 1 set (Siemens Beide motor) |
| Knife Adjustment Motor | 1.1 kW × 1 set (Siemens Beide motor) |
| Hydraulic Station Motor | 0.75 kW × 1 set |
| Standard spindle veneer lathe | Thickness tolerance within ±0.05 mm |
| High-precision servo-controlled model | Thickness tolerance within ±0.03 mm |
