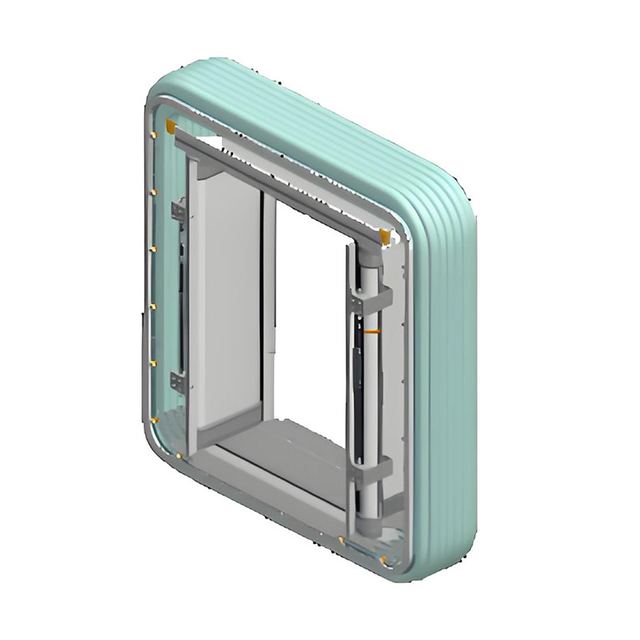

Subway Type B Split Flexible Gangway
Overview
Subway Type B Split Flexible Gangway supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Certification IRIS; Material Paulin; Aluminium Alloy; Dimensions 1300*900mm Or 1500*1900mm; Waterproofing Leak-proof, Compliant With IEC61133. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | IRIS |
|---|---|
| Material | Paulin; Aluminium Alloy |
| Dimensions | 1300*900mm Or 1500*1900mm |
| Waterproofing | Leak-proof, Compliant With IEC61133 |
| Support Method | Self-supporting |
| Fire Protection | EN45545/BS6853/DIN5510 (optional) |
| Product Performance | Reference Value |
| Curve Negotiation Capability | Radius 110m, S-curve |
| Passing Dimensions (Width * Height) | 1300*900mm or 1500*1900mm |
| Fire Resistance | EN45545/BS6853/DIN5510 (optional) |
| Sound Insulation | ≥than 36dB, 38dB, 40dB (optional) |
| Thermal Insulation | K ≤ 3W/(m·K) |
| Operating Speed | Maximum 160 km/h |
