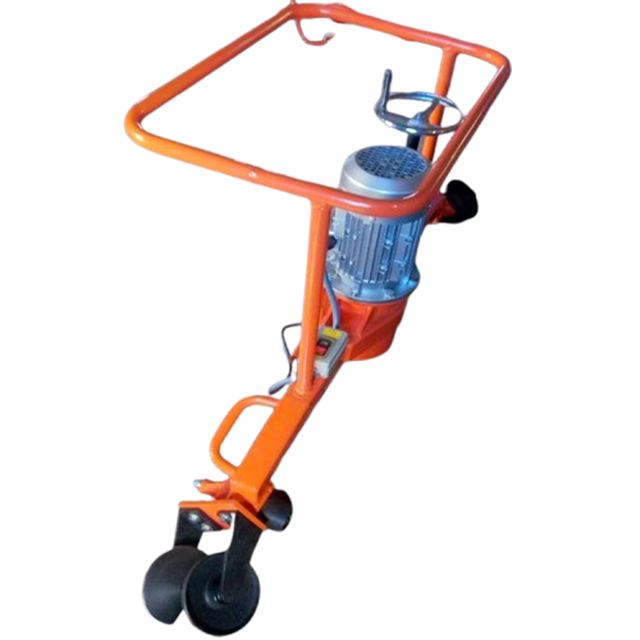

DGM-2.2 Rail Profile Grinder
Overview
DGM-2.2 Rail Profile Grinder supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Track Gauge 1384-1470mm; Check Rail Gauge 1364-1450mm; Back-to-back Distance 1344-1430mm; Flangeway Clearance 20-107mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Track Gauge | 1384-1470mm |
|---|---|
| Check Rail Gauge | 1364-1450mm |
| Back-to-back Distance | 1344-1430mm |
| Flangeway Clearance | 20-107mm |
| Cant | -200-+200mm |
| Display Screen | OLED |
| Power Voltage | DC3.4V~5.2V(Rechargeable Battery) |
| Product Performance | Reference Value |
| Material | Steel |
| Motor power | 2.2kw |
| Working voltage | 380V three-phase |
| Grinding wheel speed | 2860r/min |
| Maximum feed | 70mm |
| Roller span | 1000mm |
| Weight | 70kg |
