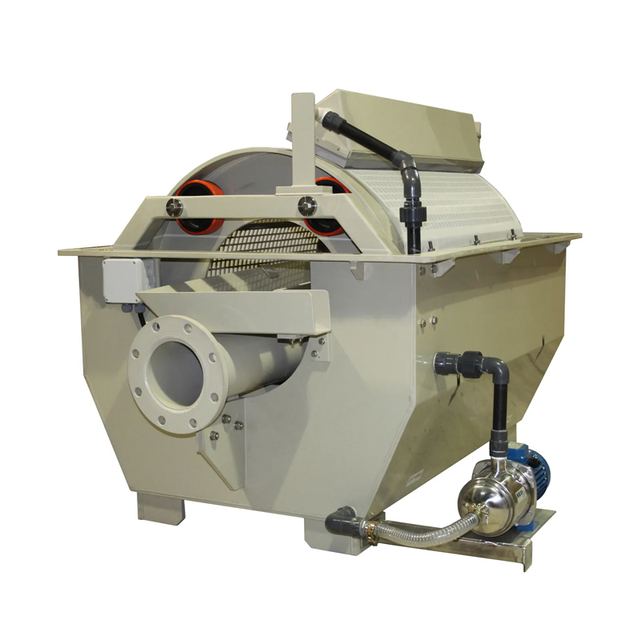

Stainless Steel Rotary Drum Filter Corrosion Resistant Backwash Self Cleaning
Overview
Stainless Steel Rotary Drum Filter Corrosion Resistant Backwash Self Cleaning supplied by Jiangsu Ponis Environmental Technologies Co., Ltd. Key published specifications: Certification CE,UL; Body Material Stainless Steel; Backwash Drive Power 1.5KW; Filtration Form Cement Tank Type, Box Type. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE,UL |
|---|---|
| Body Material | Stainless Steel |
| Backwash Drive Power | 1.5KW |
| Filtration Form | Cement Tank Type, Box Type |
| Backwash Cycle | 1-3min |
| Working Pressure | Gravity Filtration |
| Processing flow | 28~35m3/h (single disk) |
| Filter plate diameter | 2000mm |
| Filtration area | 4.5m2/single disc |
| Filtration rate | 8-15m/h/m2 |
| Influent water quality | SS≤30mg/L |
| Outlet water quality | SS≤10mg/L |
| Filter disc material | Reinforced engineering plastic |
| Filter cloth material | Stainless steel, PE polyester |
| Backwash pump power | 5-11KW |
| Washing water volume | 30L/1 tray/1 time |
| Cleaning pressure | 6-8 bar |
| Head loss | 50-200mm |
