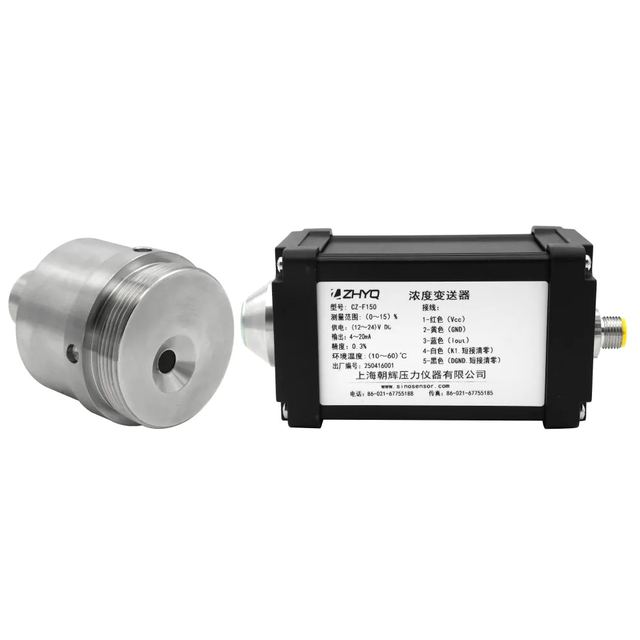

Split Type Inline Brix Refractometer
Model CZ-F
Overview
Split Type Inline Brix Refractometer supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Resolution nD; 0.0001 / Brix; 0.1% / T; 0.1℃; Accuracy nD; ±0.001 / Brix; ±1% / T; ±1℃; Power supply 12~24V DC; Signal output DC 4~20mA or RS485. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Resolution | nD; 0.0001 / Brix; 0.1% / T; 0.1℃ |
|---|---|
| Accuracy | nD; ±0.001 / Brix; ±1% / T; ±1℃ |
| Power supply | 12~24V DC |
| Signal output | DC 4~20mA or RS485 |
| Protection grade | IP65 |
| Operating pressure | Maximum tolerance 1Mpa |
| Prism material | Artificial sapphire |
| Wetted material | Standard; SS316L (optional; 2205; Hastelloy C-276) |
| Installation type | Thread |
| Length of cable | ≤20m |
