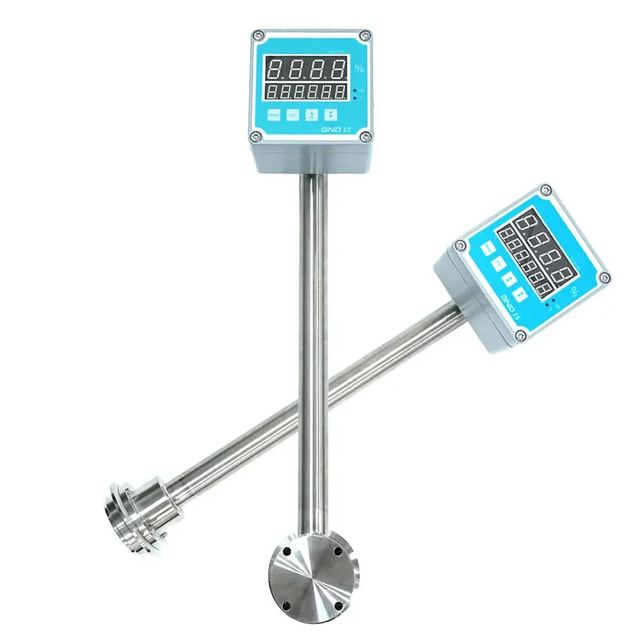

Immersion Brix Refractometer
Model CZ-L
Overview
Immersion Brix Refractometer, listed under Refractometers by Shanghai Zhaohui Pressure Apparstus Co.,Ltd in Songjiang, Shanghai. Power supply 12~24V DC, signal output DC 4~20mA or RS485 and protection grade IP65 are among the specifications published.
Technical specifications
| Power supply | 12~24V DC |
|---|---|
| Signal output | DC 4~20mA or RS485 |
| Protection grade | IP65 |
| Operating pressure | Maximum tolerance 1Mpa |
| Prism material | Artificial sapphire |
| Wetted material | Standard; SS316L (optional; 2205; Hastelloy C-276) |
| Installation type | Immersion installation |
| Length of rod | 400mm-1200mm (optional) |
