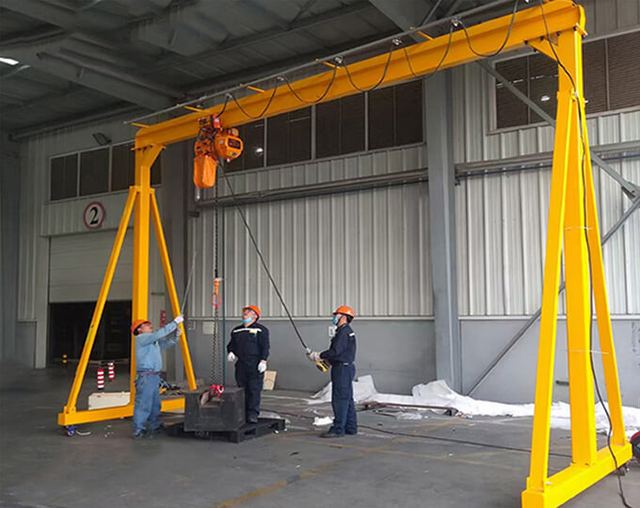

Small Gantry Crane
Overview
Small Gantry Crane supplied by Henan Xiqi Industrial Co., Ltd. Key published specifications: Type Mobile portable gantry crane; Lifting capacity 0.5—10ton; Lifting height 3—15m or customized; Span 3—10m or customized. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Mobile portable gantry crane |
|---|---|
| Lifting capacity | 0.5—10ton |
| Lifting height | 3—15m or customized |
| Span | 3—10m or customized |
| Hoisting speed | 3—8m/min or customized |
| Working class | A3 |
| Lifting method | Electric or manual |
| Painting | Yellow, white, red or customized |
| Power supply | AC 380V 50hz or customized |
| Capacity | 5T-10T |
| Lift height | 6m-18m |
| Power source | 380V 50hz 3P or customized |
