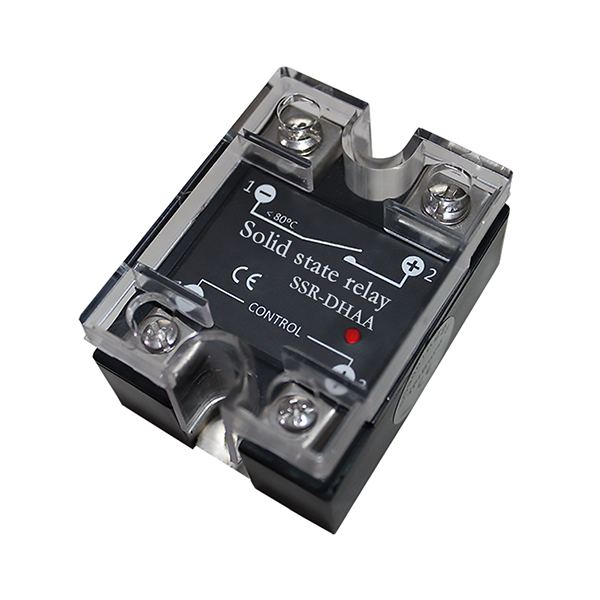

Single Phase AC-AC SSR Solid State Relay
Overview
Single Phase AC-AC SSR Solid State Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Model ATO-SSR-DHAA; Voltage Type AC to AC; Control Voltage Range 70-280V AC; Max Input Current 12 mA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | ATO-SSR-DHAA |
|---|---|
| Voltage Type | AC to AC |
| Control Voltage Range | 70-280V AC |
| Max Input Current | 12 mA |
| Must Operate Voltage | 2.8V DC |
| Must Release Voltage | 1.5V DC |
| Phase Type | Single phase |
| Maximum Load Current | 10A, 15A, 25A, 40A, 60A, 80A, 100A, 120A |
| Load Voltage Range | 24-480V AC |
| Peak Voltage | 800V AC |
| Certification | CE, CCC, TUV, UL |
| Maximum Off-state Leakage Current | 2 mA |
| Maximum On-state Voltage Drop | 1.5V |
| Weight | 100g |
| Dimension (Unit | mm) |
