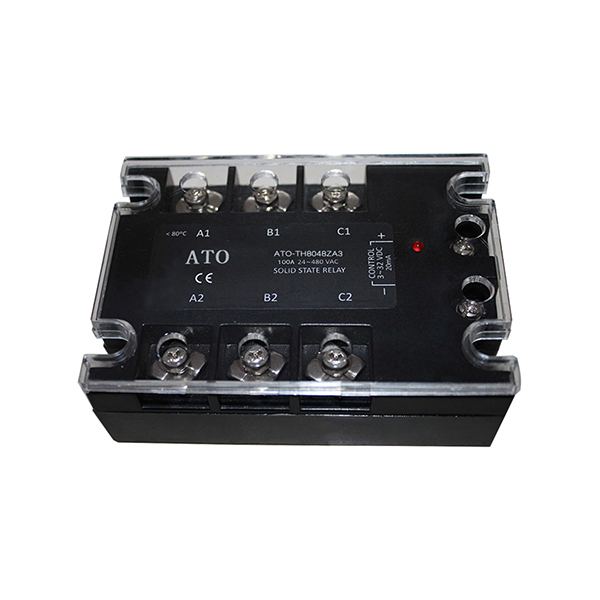

3 Phase AC-AC SSR Solid State Relay

3 Phase AC-AC SSR Solid State Relay

Overview

3 Phase AC-AC SSR Solid State Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Model ATO-SSR-THAA; Voltage Type AC to AC; Load Voltage 24-480V AC; Control Voltage 70-280V AC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

ModelATO-SSR-THAA
Voltage TypeAC to AC
Load Voltage24-480V AC
Control Voltage70-280V AC
Max. Input Current20mA
Must Operation Voltage70V AC
Must Release Voltage50V AC
Max. on-State Voltage Drop1.5V
Peak Voltage800V AC
Load Current10A, 25A, 40A, 60A, 80A, 100A, 120A
Max off-State Leakage Current8mA
CertificationCE, CCC, TUV, UL
Dimension (Unitmm)
