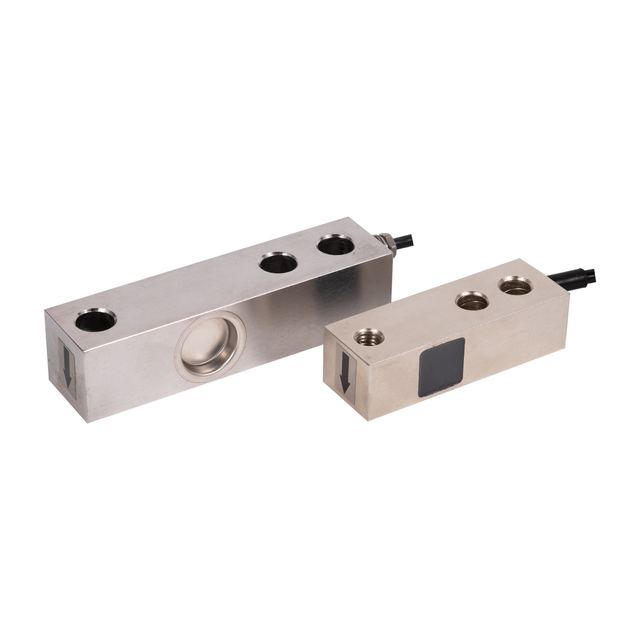

Shear Beam Load Cell WL-125 ≤0.02% Error 0.1-10t IP67 With 3m Cable
Model WL-125
Overview
Shear Beam Load Cell WL-125 ≤0.02% Error 0.1-10t IP67 With 3m Cable supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 100/200/500kg,1/2/2.5/3/5/7.5t; Rated Output 2.0±0.005/3.0±0.005mV/V; Combined Error ≤±0.02%F.S.; Recommended Excitation 10~15VDC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 100/200/500kg,1/2/2.5/3/5/7.5t |
|---|---|
| Rated Output | 2.0±0.005/3.0±0.005mV/V |
| Combined Error | ≤±0.02%F.S. |
| Recommended Excitation | 10~15VDC |
| Material | Alloy Steel/Stainless Steel |
| Cable Size | Ф5.4x6000mm(10000mm) |
| Safe Overload | 120%F.S |
| Operation Temp. | -20~60°C |
| Protection Class | IP67 (Customizable) |
| Zero Balance | ±1.00%mV/V |
| Non-linearity | ≤ 0.02%F.S. |
| Repeatability | ≤ 0.01%F.S. |
| Insulation Resistance | >5000M Ω /100VDC |
| IP class | IP67 (Customizable) |
| Certification | CNAS |
