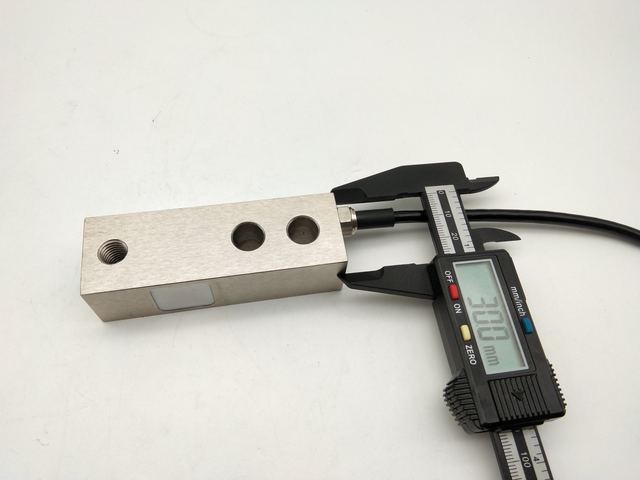

Shear Beam Load Cell WL-124 ≤0.05% Error 50-300kg With 6m Cable
Model WL-124
Overview
Shear Beam Load Cell WL-124 ≤0.05% Error 50-300kg With 6m Cable supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 50~300kg; Rated Output 2.0±0.01mV/V; Combined Error 0.05%F.S.; Material Alloy Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 50~300kg |
|---|---|
| Rated Output | 2.0±0.01mV/V |
| Combined Error | 0.05%F.S. |
| Material | Alloy Steel |
| Recommended Excitation | 10~15VDC |
| Cable Size | Ф5.4x6000mm(Customizable) |
| Safe Overload | 120%F.S |
| Temp. | -10~50°C |
| Protection | IP66 (Customizable) |
| Zero Balance | ±1.00%mV/V |
| Non-linearity | 0.05%F.S. |
| Repeatability | 0.02%F.S. |
| Insulation Resistance | >5000M Ω /100VDC |
| Operation temp | -10~50°C |
| IP class | IP66 (Customizable) |
| Certification | CNAS |
