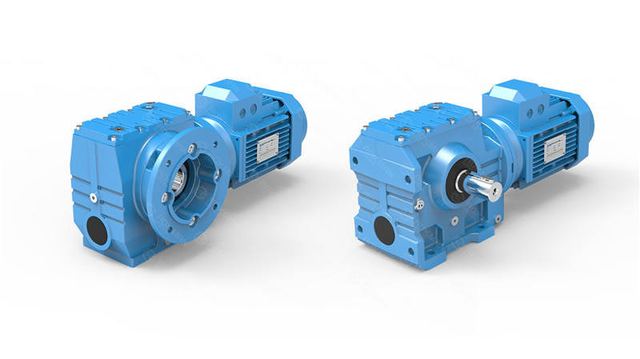

S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft
Overview
S Series Helical Gear Reducer Worm Gearbox With Double Solid Shaft supplied by Shanghai Fanbao Industrial Co., Ltd. Key published specifications: Output Torque 10-4890 (N.M); Input Speed 1450rpm; Output Speed 0.12-397 (rpm); Efficiency 94%~98% (depends on the transmission stage). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output Torque | 10-4890 (N.M) |
|---|---|
| Input Speed | 1450rpm |
| Output Speed | 0.12-397 (rpm) |
| Efficiency | 94%~98% (depends on the transmission stage) |
| Mounting Position | Foot, flange, torque, arm, hollow/s |
| Gearing Arrangement | Worm |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58°~62° |
| Gear core hardness | HRC33~40 |
| Input/Output shaft material | 42CrMo alloy steel |
| Input/Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Noise (MAX) | 60~68dB |
| Backlash | ≤20Arcmin |
