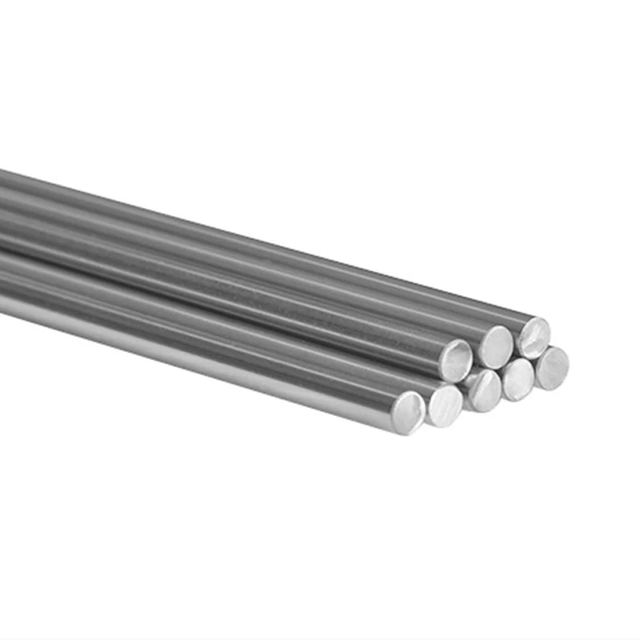

Linear Shaft
Overview
Linear Shaft supplied by Lishui Hengyuan Bearing Manufacturing Co.Ltd. Listed under Linear Guides. Key published specifications: Material Steel 45#;GCR15;; Hardness HRC:58-62; Hardened Layer Thickness 0.8-3.00mm; Precision G6. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Steel 45#;GCR15; |
|---|---|
| Hardness | HRC:58-62 |
| Hardened Layer Thickness | 0.8-3.00mm |
| Precision | G6 |
| Roughness | Within1.5μm |
| Roundness | Within 3.0μm(Rmax) |
| Straightness | Not excess 1.5μm of 100mm (Rmax) |
| Thickness of Chrome Plated | 10-20μm,15μm on average |
| G6;Diameter tolerance | -0.005mm-.0.27mm; Length tolerance:+/-0.5mm(1M-3M);+/-1mm(3M-6M) |
| Inch Diameter | 6.35mm,9.525mm,12.7mm,15.875,19.05,25.4mm,31.75mm,38.1mm |
