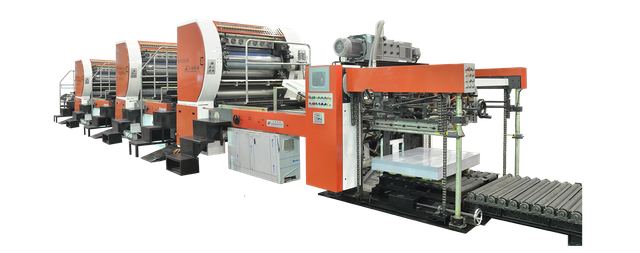

RYYT 452 Series Metal Decorating Machine
Overview
RYYT 452 Series Metal Decorating Machine supplied by Kunshan RUIYUAN Intelligent Equipment Co., Ltd. Listed under Other Printing Machines. Key published specifications: Configurations RYYT1452W/1-COLOR; Ryyt2452/2-Color RYYT3452/3-COLOR; Maximum sheet size 1145×950mm; Minimum sheet size standard 712×510mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Configurations | RYYT1452W/1-COLOR |
|---|---|
| Ryyt2452/2-Color | RYYT3452/3-COLOR |
| Maximum sheet size | 1145×950mm |
| Minimum sheet size standard | 712×510mm |
| Sheet thickness standard | 0.15-0.4mm |
| Maximum printing area | 1135×945mm |
| Size of printing plate | 1160×1040×0.3mm |
| Size of pre-bar blanket | 1175×1135×1.9mm |
| Gripper margin | 3-5mm |
| Height of infeed table | 916mm |
| Maximum weight of feeder pile | 2.0 (ton) |
| Power of main motor | 15 kw |
| Capacity of air pump | 80+100(m³/hr) |
| 10750x3700x2460mm | 14750x3700x2460mm |
