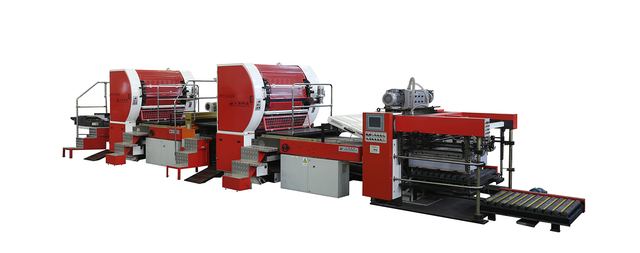

Aluminum Metal Printing Machine

Aluminum Metal Printing Machine

Overview

Kunshan RUIYUAN Intelligent Equipment Co., Ltd in Kunshan, Jiangsu lists Aluminum Metal Printing Machine under Printing Machines. Configurations RYYT1452W/1-COLOR, ryyt2452/2-color RYYT3452/3-COLOR and maximum sheet size 1145×950mm are among the specifications published.

Technical specifications

ConfigurationsRYYT1452W/1-COLOR
Ryyt2452/2-ColorRYYT3452/3-COLOR
Maximum sheet size1145×950mm
Minimum sheet size standard712×510mm
Sheet thickness standard0.15-0.4mm
Maximum printing area1135×945mm
Size of printing plate1160×1040×0.3mm
Size of pre-bar blanket1175×1135×1.9mm
Gripper margin3-5mm
Height of infeed table916mm
Maximum weight of feeder pile2.0 (ton)
Power of main motor15 kw
Capacity of air pump80+100(m³/hr)
10750x3700x2460mm14750x3700x2460mm
