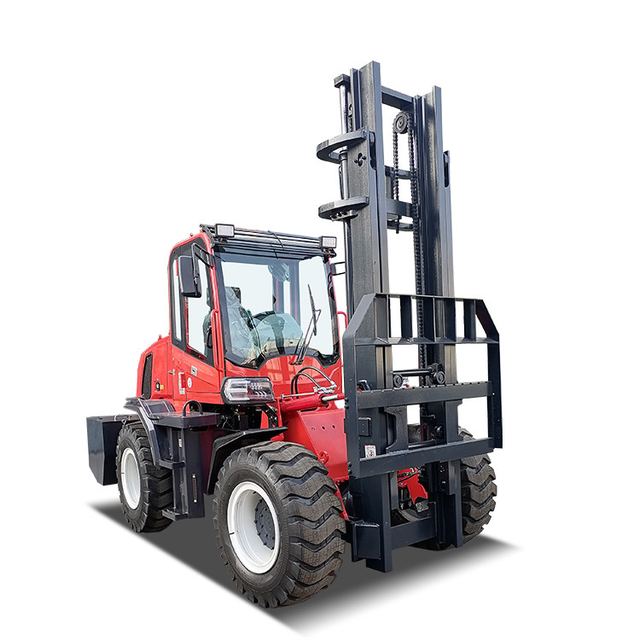

Rough Terrain/Off Road Forklift Truck 5ton Index Axis Support EPA4, EuroV
Overview
Rough Terrain/Off Road Forklift Truck 5ton Index Axis Support EPA4, EuroV supplied by Hunan Kamuja Machinery & Equipment Co.,Ltd. Key published specifications: Type DIESEL ROUGH TERRAIN FORKLIFT; Max. Lifting Height 4~6M (optional Mast); Fork Length 1520mm; Rated Loading Capacity 5000kg / 5ton. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | DIESEL ROUGH TERRAIN FORKLIFT |
|---|---|
| Max. Lifting Height | 4~6M (optional Mast) |
| Fork Length | 1520mm |
| Rated Loading Capacity | 5000kg / 5ton |
| Engine | China II; EPA4; EuroV |
| Model | T50A(Index axis) |
| Rated lifting load | 5000kg |
| Rated lifting height | 4000mm-6000mm |
| Load center distance | 600mm |
| Min.turning radius | 3800mm |
| Min.ground clearance | 3800mm |
| Walking speed | 45km/h |
| Max.traction | 35KN |
| Engine power | Yunnei 4102 supercharged 76KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V) |
| Drive type | 4 wheel drive |
| Gearbox | 265 double high low speed torque converter |
| Wheelbase | 2400mm |
| Mast Steel Width | 180mm |
| Overall weight | 5500kg |
| Dimensions | 4500*1900*2850mm |
| 16/70-24 Tires (Dragon Pattern) Width | 40CM Height: 118CM |
