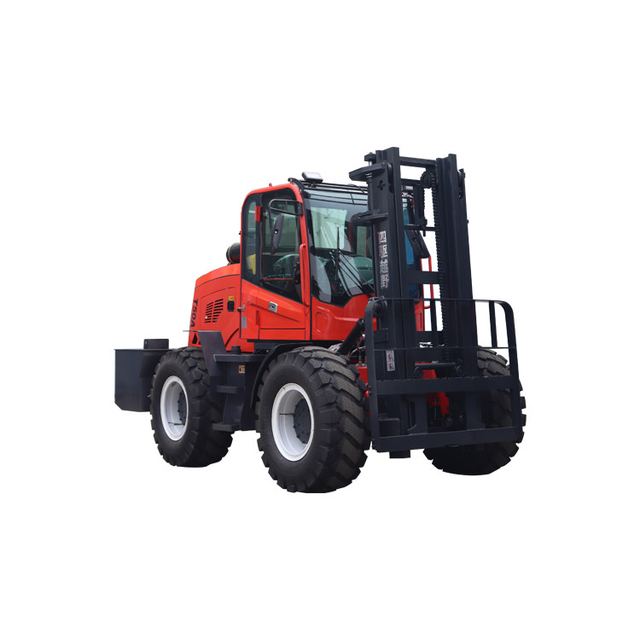

5.0T Short Rough Terrain Forklift Lifting Height 3~6m

5.0T Short Rough Terrain Forklift Lifting Height 3~6m

Overview

5.0T Short Rough Terrain Forklift Lifting Height 3~6m supplied by Hunan Kamuja Machinery & Equipment Co.,Ltd. Key published specifications: Power Souce Diesel Engine; Max. Lifting Height 3000mm-6000mm (optional Mast); Fork Length 1220mm With Optional; Rated Loading Capacity 5000kg / 5ton. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Power SouceDiesel Engine
Max. Lifting Height3000mm-6000mm (optional Mast)
Fork Length1220mm With Optional
Rated Loading Capacity5000kg / 5ton
EngineYunnei 4100 Supercharged 65KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V)
ModelT50A(Short)
Rated lifting load5000kg
Rated lifting height3000mm-6000mm
Load center distance600mm
Min.turning radius4200mm
Min.ground clearance4200mm
Walking speed38km/h
Max.traction35N
Engine powerYunnei 4100 supercharged 65KW/Cummins 55KW(EPA4,Euro V)/Yunnei 55KW(Euro V)
Drive type4 wheel drive
Gearbox265 double high low speed torque converter
Wheelbase1980mm
Mast Steel Width180mm
Overall weight5000kg
Dimensions4200*1920*2500mm
16/70-20 Tires (Dragon Pattern) Width36CM Height: 108CM
