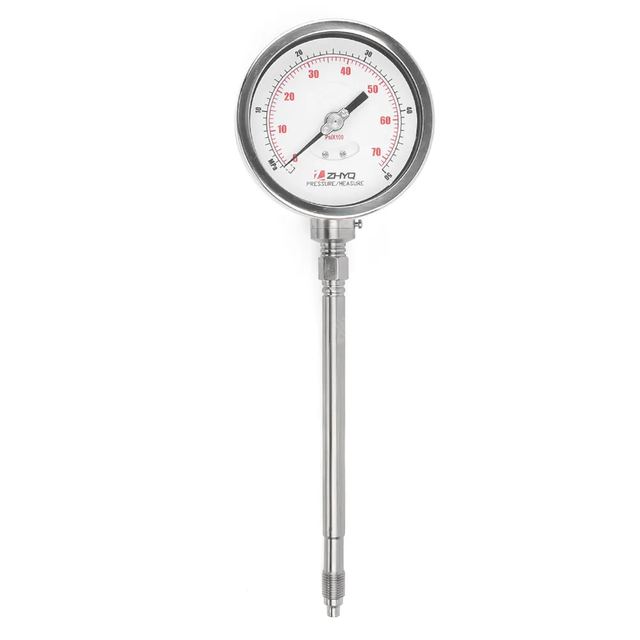

Rigid Stem Melt Pressure Gauge
Model PT124Y-610
Overview
Rigid Stem Melt Pressure Gauge supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Pressure range 0~5MPa~150MPa; Overload 150%FS; Display mode Pointer; Pointer accuracy ±1.6%FS ; ±2.5%FS. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pressure range | 0~5MPa~150MPa |
|---|---|
| Overload | 150%FS |
| Display mode | Pointer |
| Pointer accuracy | ±1.6%FS ; ±2.5%FS |
| Dial diameter | 100mm |
| Internal filling medium | Mercury |
| Operating temperature | Max 400℃ |
| Process connection | 1/2″-20UNF ; M14*1.5 |
