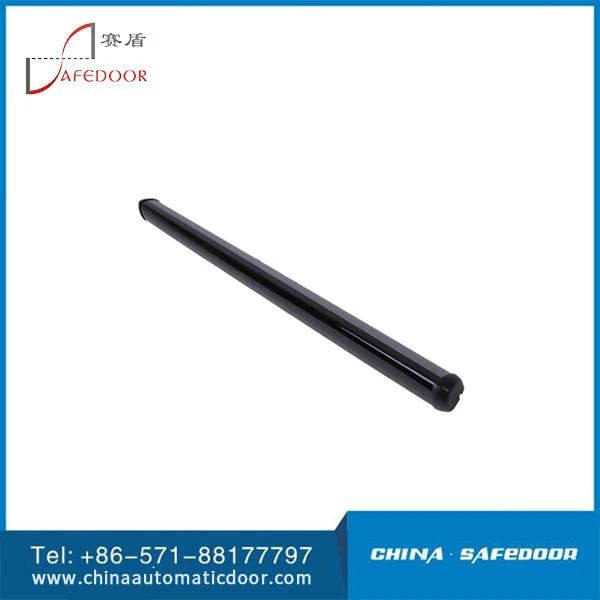

Revolving Door Top Scan
Overview
Revolving Door Top Scan supplied by Hangzhou Safedoor Automation & Hardware Co Ltd. Key published specifications: Input voltage AC/DC 12~30V(-/+10%); Working current 237mA; Quiescent Current 123mA; Detection zone diameter about 75mm spot. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Input voltage | AC/DC 12~30V(-/+10%) |
|---|---|
| Working current | 237mA |
| Quiescent Current | 123mA |
| Detection zone diameter | about 75mm spot |
| Operation mode | mobile or stationary mode adaptation |
| Operating mode | background suppression |
| Scanning range | mechanical adjustment 1500~2500mm |
