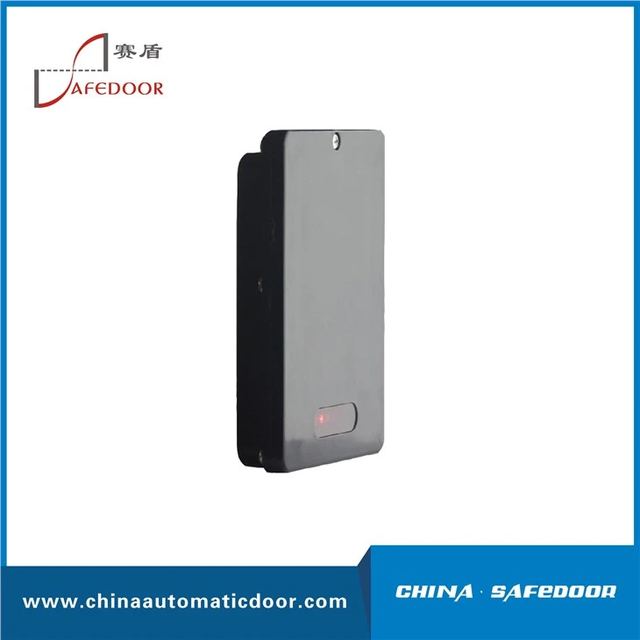

Radar Detector
Model Art.No 1031.BM06
Overview
Radar Detector supplied by Hangzhou Safedoor Automation & Hardware Co Ltd. Key published specifications: Transmit frequency (GHz) 60G/77-81GHz; Radar antenna (TR) 2T4R; Working voltage (v) 5-24V; Power consumption Less than 1.6W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Transmit frequency (GHz) | 60G/77-81GHz |
|---|---|
| Radar antenna (TR) | 2T4R |
| Working voltage (v) | 5-24V |
| Power consumption | Less than 1.6W |
| Size (mm) | H112*W82*L24 |
| Debugging method | One-button learning |
| Horizontal width (m) | Default +- 0.5m (+-1m dial code adjustable) |
| Vertical width (m) | Default 2.5m (adjustable by dialing 0.5m-6, support customization) |
| Detection accuracy (m) | 0.1m |
| Response time | 20Hz in anti-smashing mode, 50Hz in trigger mode |
| Output mode | Relay signal, support customization |
| Delay output | 1-5 seconds adjustable |
| Specific area detection mode | detectable distance 0.1m-20m. |
