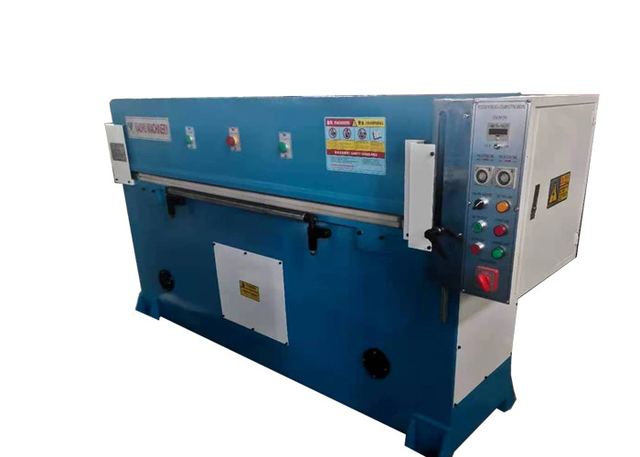

Programmable Manual Hydraulic Die Cutting Machine Digital
Model XCLP3-40
Overview
Programmable Manual Hydraulic Die Cutting Machine Digital supplied by Jiangsu Yaoyu Shoe Machinery CO., LTD. Listed under Hydraulic Press. Key published specifications: Core Components Motor, PLC; Cutting Type By Die Cut/Mould; Type PY-950; Cut Precision ± 0.10mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Core Components | Motor, PLC |
|---|---|
| Cutting Type | By Die Cut/Mould |
| Type | PY-950 |
| Cut Precision | ± 0.10mm |
| Production capacity | 150-210imes/min |
| Max Paper Convey Width | 850mm |
| Suitable Material | 100-800g/m2 coated paper, white cardboard |
| Total Power | 11KW |
| Total Weight | 6500KGS |
| Maximum cutting size | 950 x540mm / 950 x640mm |
| Maximum Pressure | 250T |
| Overall Dimension | 4200 x 2100 x 1850 mm |
| Working Air Source | Air pressure 0.5-0.7Mpa (Need to buy compressor) |
| Main motor power | 3KW |
| Machine weight | 3000KG/3000KG |
