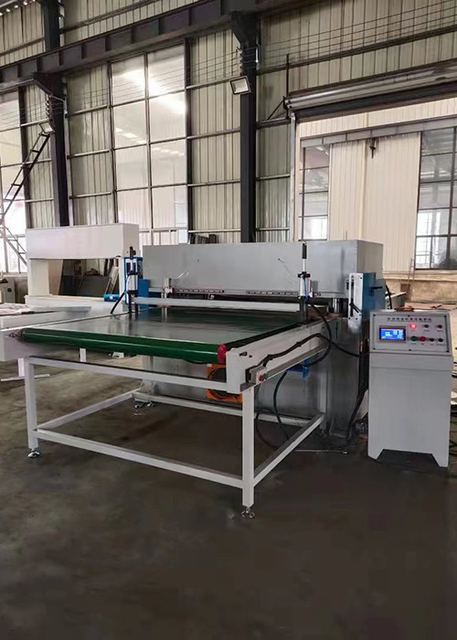

Four Columns Hydraulic Leather Cutting Press Machine Precision
Model XCLL-2/25
Overview
Four Columns Hydraulic Leather Cutting Press Machine Precision, listed by Jiangsu Yaoyu Shoe Machinery CO., LTD in Yancheng, Jiangsu. Published figures include key selling points Easy To Operate, material Steel and certification CE And ISO.
Technical specifications
| Key Selling Points | Easy To Operate |
|---|---|
| Material | Steel |
| Certification | CE And ISO |
| Application | APPAREL, Beverage, Food, Medical, Textiles |
| Maximum Cutting Force | 40T |
| Technical Spec | Maximum Cutting Force |
| The cutting speed | 0.12m/s |
| Stroke range | 0-120mm |
| Upper pressure plate size | 500x500mm |
| Lower work table size | 1600x500mm |
| The motor power | 2.2kw |
| Overall dimensions | 2200x700x2050mm |
| The weight | 1680kg |
