Overview

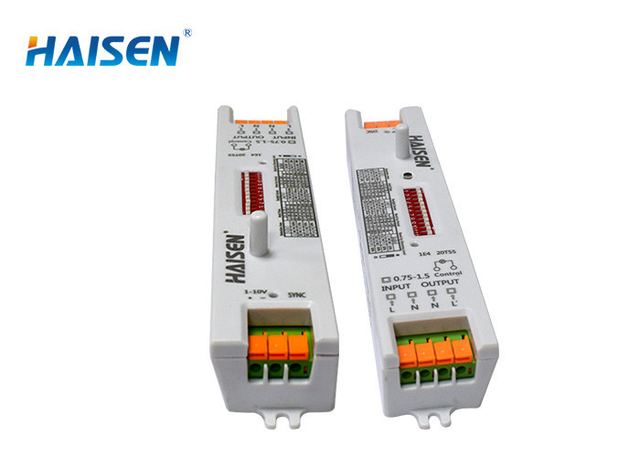

Power 0.3mW Microwave Motion Sensor DIP Switch Setting Control supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE RoHS; Microwave frequency 5.8GHz±75MHz; Operating voltage 120~277VAC 50/60Hz; Stand-by power <1W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE RoHS
Microwave frequency	5.8GHz±75MHz
Operating voltage	120~277VAC 50/60Hz
Stand-by power	<1W
Microwave power	<0.3mW
Hold time	5s/30s/1min/5min/10min/20min/30min
Stand-by period	0s/10s/1min/10min/30min/1h/∞
Daylight threshold	2Lux/10Lux/50Lux/Disable
Approval	CE RoHS
Mounting height	Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Life time	50,000 hours
Operating temperature	-20°C~+55°C
Installation	Installed inside lamps
IP Rating	IP20
