Overview

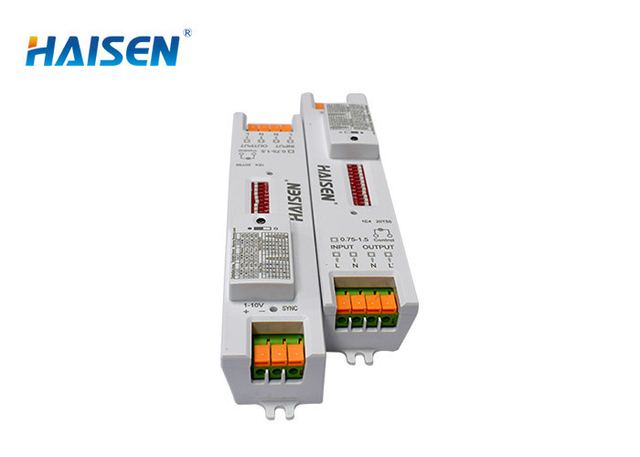

5.8GHz High Frequency Motion Sensor Dimming DIP Switch Control supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE TUV RED RoHS; Microwave frequency 5.8GHz±75MHz; Microwave power <0.3mW; Stand-by power ≤1W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE TUV RED RoHS
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Stand-by power	≤1W
Operating voltage	220~240 VAC 50/60Hz
Switching capacity	Max.400W(Control gear) Max.800W(Incandescent lamp)
Hold time	5s/30s/1min/5min/10min/20min/30min
Stand-by period	0s/10s/1min/10min/30min/1h/∞
Daylight threshold	2Lux/10Lux/50Lux/Disable
Mounting height	Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Operating temperature	-20°C~+55°C
IP rating	IP20
Life time	50,000 hours
Approval	CE RoHS RED TUV
