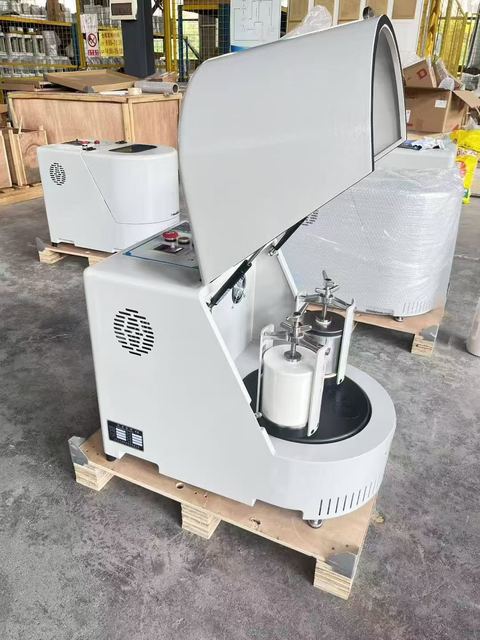

Planetary Ball Mill with 0.1 Micron Grinding & Safety Features
Model XQM-0.4
Overview
Planetary Ball Mill with 0.1 Micron Grinding & Safety Features supplied by Guangzhou Zoli Technology Co.,Ltd. Key published specifications: Volume of each matched Jar 100ml; Voltage 220V - 50Hz; Machine Size 500*300*340mm; Machine Weight 100 Kg without mill jar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Volume of each matched Jar | 100ml |
|---|---|
| Voltage | 220V - 50Hz |
| Machine Size | 500*300*340mm |
| Machine Weight | 100 Kg without mill jar |
| Work mode | 4 jars working together |
| Mill mode | Dry / wet milling |
| Drive Mode | Gear drive |
| Rotational Speed | 90-870 r/min, adjusting |
| Material Capacity | Material + mill balls < 2/3 volume |
| Output Granularity Size | Minimum 0.1μm |
| Max. continuous operating time (full-load) | 72 hours |
| Interval operation | With direction reversal |
| Certification | ISO9001 CE |
| Power Consumption | 0.75KW |
| Grinding Balls Diameter | 10mm |
| Powersupply | 220V/50Hz |
| Weight | 30 Kg |
| Control Mode | Frequency Converter Control |
| Speed | 0-580rpm |
| Motor Power | 380 W |
| Grinding Ball Size | 10 Mm |
