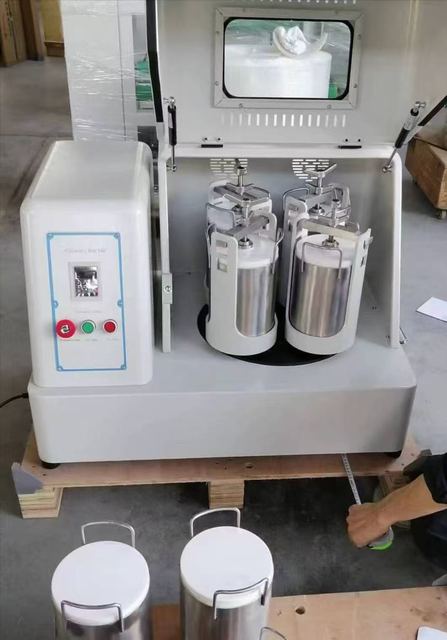

XQM Series Planetary Ball Mill for 0.1 Micron Grinding with Dry/Wet Modes and Air Cooling System
Model XQM-2
Overview
XQM Series Planetary Ball Mill for 0.1 Micron Grinding with Dry/Wet Modes and Air Cooling System supplied by Guangzhou Zoli Technology Co.,Ltd. Key published specifications: Volume of each matched Jar 25-500ml; Voltage 220-240 v, 50/60 Hz; Motor power and frequency conversion power 1.1Kw; Machine Size 750×450×550mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Volume of each matched Jar | 25-500ml |
|---|---|
| Voltage | 220-240 v, 50/60 Hz |
| Motor power and frequency conversion power | 1.1Kw |
| Machine Size | 750×450×550mm |
| Machine Weight | 120Kg without mill jar and balls |
| Mill mode | Dry / wet milling |
| Speed Frequency | Adjusting |
| Drive Mode | Gear drive |
| Material Capacity | Material + mill balls < 2/3 volume |
| Output Granularity Size | Minimum 0.1μm |
| Max. continuous operating time (full-load) | 72 hours (Timer 0-9999h) |
| Interval operation | With direction reversal |
| Certification | ISO9001 CE |
| Coolingsystem | Air Cooling |
| Power Source | Electric |
| Speed | 0-450rpm |
| Grinding Balls Material | Zirconia, Agate, Alumina, Nylon, PTFE |
| Grinding Balls Diameter | 10mm |
| Grinding Ball Size | 10 Mm |
| Grinding Ball Material | Stainless Steel |
| Dimension | 500mm*300mm*340mm |
