Overview

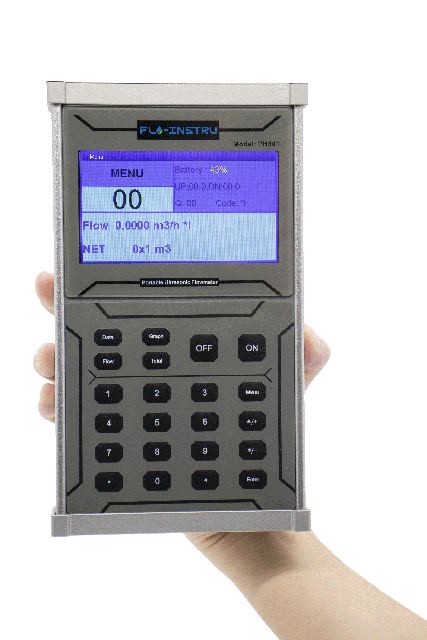

PH301 Portable Ultrasonic Flow Meter with TFT Screen supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Keypad 22 Touch Keys; Analog Output 4~20mA, Max 750 Ω; Velocity Range 0 ~ ±40 Ft/s (0 ~ ±12 M/s); Display 4.3 Inch TFT Screen, Backlight LCD. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Keypad	22 Touch Keys
Analog Output	4~20mA, Max 750 Ω
Velocity Range	0 ~ ±40 Ft/s (0 ~ ±12 M/s)
Display	4.3 Inch TFT Screen, Backlight LCD
Pipe Size	1''~ 200'' (25mm~5000mm)
Accuracy	±0.5% of measured value
Outputs	Analog output: 4~20mA, Max 750 Ω
SD card	Storage: 2GB; Max: 512 files; Interval: 1~86400s
Temperature	Transmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~248℉ (-40℃~120℃)
Humidity	0 to 99% RH, non-condensing
Transmitter	NEMA13 (IP54)
Transducer	Encapsulated design, IP68; Standard cable length: 5m
Weight	Transmitter: approximately 1.0kg
Certification	CE/IS09001
Storage	2GB; Max: 512 files; Interval: 1~86400s
