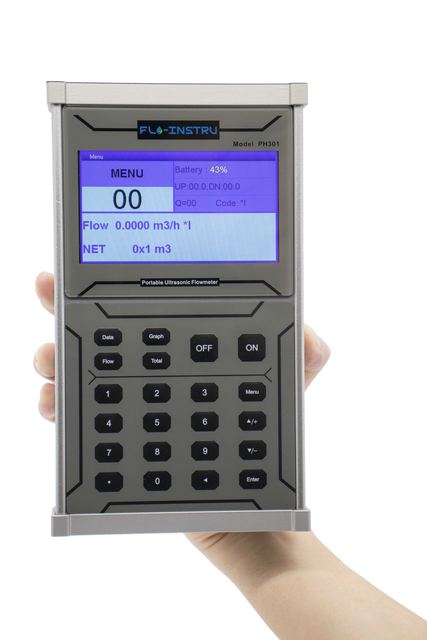

PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, IP68 Transducer, and 4.3 inch TFT Screen
Model PH301
Overview
PH301 Portable Ultrasonic Flow Meter with ±0.5% Accuracy, IP68 Transducer, and 4.3 inch TFT Screen supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Pipe Size 1''~ 200'' (25mm~5000mm); Keypad 22 Touch Keys; SD Card Storage: 2GB, Max: 512 Files, Interval: 1~86400s; Outputs Analog Output: 4~20mA, Max 750 Ω. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pipe Size | 1''~ 200'' (25mm~5000mm) |
|---|---|
| Keypad | 22 Touch Keys |
| SD Card | Storage: 2GB, Max: 512 Files, Interval: 1~86400s |
| Outputs | Analog Output: 4~20mA, Max 750 Ω |
| Velocity range | ±0.03 ~ ±40 ft/s (±0.01 ~ ±12 m/s) |
| Accuracy | ±0.5% of measured value |
| Power supply | Rechargeable Lithium Battery Power (continuous operation: 12 hours) |
| Display | 4.3 inch TFT screen, backlight LCD |
| Temperature | Transmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~248℉ (-40℃~120℃) |
| Humidity | 0 to 99% RH, non-condensing |
| Transmitter | NEMA13 (IP54) |
| Transducer | Encapsulated design, IP68; Standard cable length: 5m |
| Weight | Transmitter: approximately 1.0kg |
| Certification | CE/IS09001 |
| Storage | 2GB, Max: 512 Files, Interval: 1~86400s |
| Analog Output | 4~20mA, Max 750 Ω |
