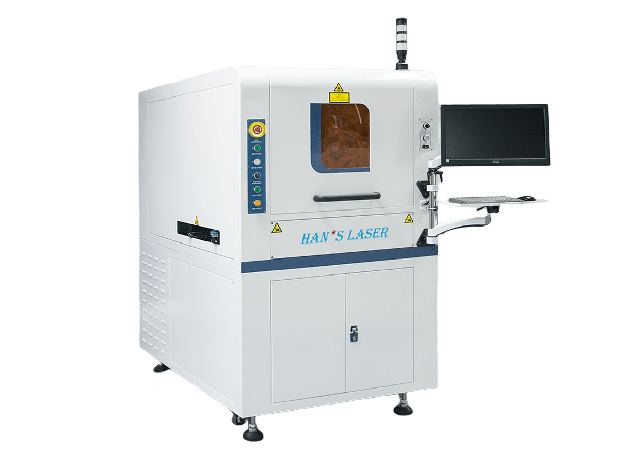

PCB100 Inline/Offline Laser Marking Machine
Overview
PCB100 Inline/Offline Laser Marking Machine supplied by Laser Corporation. Listed under Laser Marking Machines. Key published specifications: Laser power CO2 Laser; Wavelength 10.6 µm; Min Beam Diameter < 100 µm; Min. Character Size 0.023” (0.6mm). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser power | CO2 Laser |
|---|---|
| Wavelength | 10.6 µm |
| Min Beam Diameter | < 100 µm |
| Min. Character Size | 0.023” (0.6mm) |
| Pulse Frequency | 20 – 100 kHz |
| Output Power | 10 Watts |
| Repetition Accuracy | ± 0.0004” (0.01mm) |
| Cooling System | Water-cooled |
| Suitable Substrate Thickness | 0.023″~0.118″ ( 0.6mm-3mm) |
| Marking Field Size | Variable (F100, F160) |
| Operation System | WINDOWS 10 |
| Power Consumed | 1kW |
| Warranty Coverage | 1-year |
| Laser Safety Compliance | FDA (CDRH) |
| Running Temperature | 15℃-35℃ / 59°-95°F |
| Weight | 1322 lbs (600kg) |
