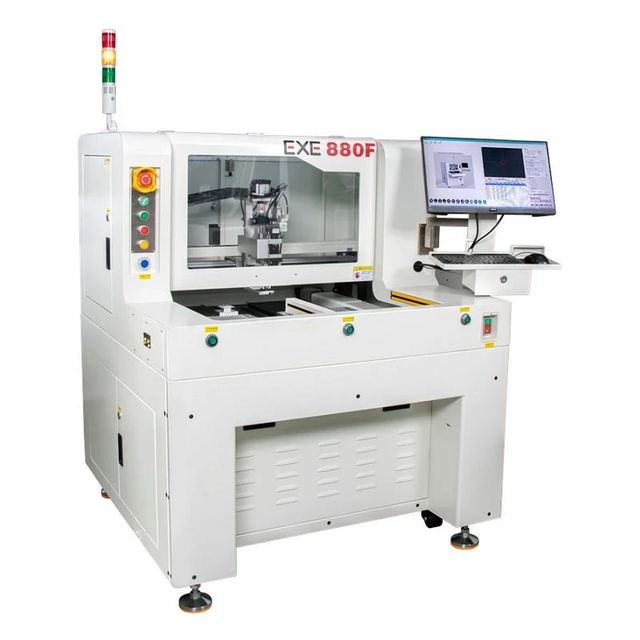

PCB Router Machine
Overview
PCB Router Machine, listed under PCB Routers by Hangzhou Yixie Intelligent Equipment Co., Ltd. Published figures include single side working size 300mm×350mm, x-y ac servo speed 0-1000mm/sec and z ac servo speed 0-800mm/sec.
Technical specifications
| Single side working size | 300mm×350mm |
|---|---|
| 4-axis servo drive | X, Y1, Y2, Z |
| X-Y AC Servo speed | 0-1000mm/sec |
| Z AC Servo speed | 0-800mm/sec |
| X-Y Repeat Accuracy | ±0.02mm |
| Cutting accuracy | ±0.05mm |
| CCD camera calibration accuracy | ±0.01mm |
| Split board stress value | 300uε or less |
| Japan NSK spindle speed | Max. 60,000rpm |
| Tool diameter | 0.8-3.0mm |
| PCB board cutting thickness | 0.2mm-6.0mm |
| Dust collector power | 3HP (option 5HP) |
| Dust collecting cabinet size | 640mm×785mm×1760mm (D×W×H) |
| Machine size | 1075mm×1430mm×1460mm (D×W×H) |
