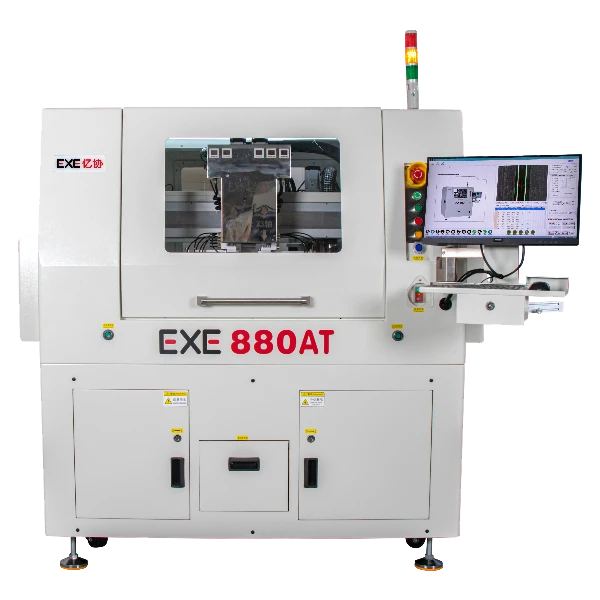

PCB Router
Overview
PCB Router, listed under PCB Routers by Hangzhou Yixie Intelligent Equipment Co., Ltd. Published figures include pcb size (mm) SW: 330X420, cutting speed 1~100mm/s and xy repeatability ±0.02mm.
Technical specifications
| PCB Size (mm) | SW: 330X420 |
|---|---|
| Cutting speed | 1~100mm/s |
| XY Repeatability | ±0.02mm |
| Contrl System | PC based 6 axis controller |
| XYZA driving | AC servo motor |
| Cutting Accuracy | ±0.1mm |
| Spindle rotation | Max 60000rpm |
| Power Supply | 1ɸ, AC 220V 50/60Hz |
| Air Supply | 4~6 kg/cm², flow: 1500L/hr |
| Power Consumption | 3KVA |
| Conveyor Height | 920±20mm |
| Dust collector | 3HP external, bottom suction |
| Power supply of dust collector | 220V (380V)3ɸ |
| Router Dimension (WXDXH mm) | SW: 1812X1510X1730 |
| Weight (Kg) | SW: 780 |
| 4~6 kg/cm², flow | 1500L/hr |
