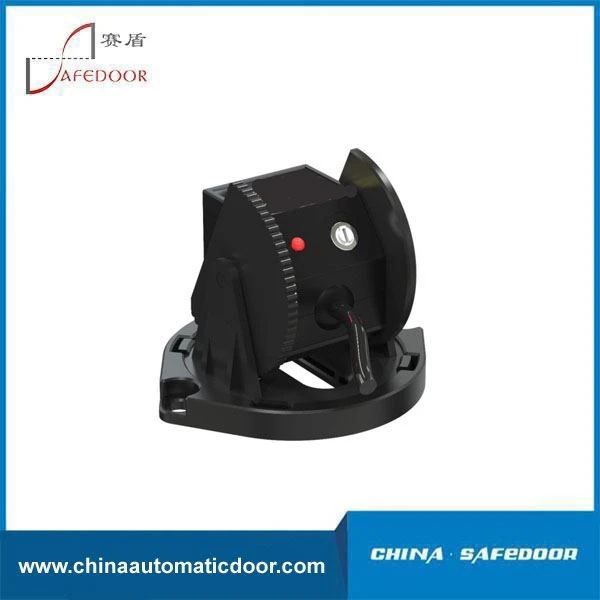

Mini Microwave Sensor
Overview
Mini Microwave Sensor supplied by Hangzhou Safedoor Automation & Hardware Co Ltd. Key published specifications: Mini Microwave Sensor Technical data 2053.204M; Power supply 12V to 24V Dc±10% (50-60Hz); Transmit frequency 24.125GHZ; Max installation height 4.5m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Mini Microwave Sensor Technical data | 2053.204M |
|---|---|
| Power supply | 12V to 24V Dc±10% (50-60Hz) |
| Transmit frequency | 24.125GHZ |
| Max installation height | 4.5m |
| Installation inclination | 0-170°(longitudinal) 360°(horizontal) |
| Detection mode | One-way movement |
| Min detection speed | 5cm/s (along the longitudinal axis of the sensor) |
| Hold time | 0.5 s |
| Wire length | 2.5M |
| Ambient temperature | -20℃ to +55℃ |
| Shell material | ABS plastic |
| Shell color | black |
| Product dimensions | 71mm (L) x60mm (W) x50mm (H) |
