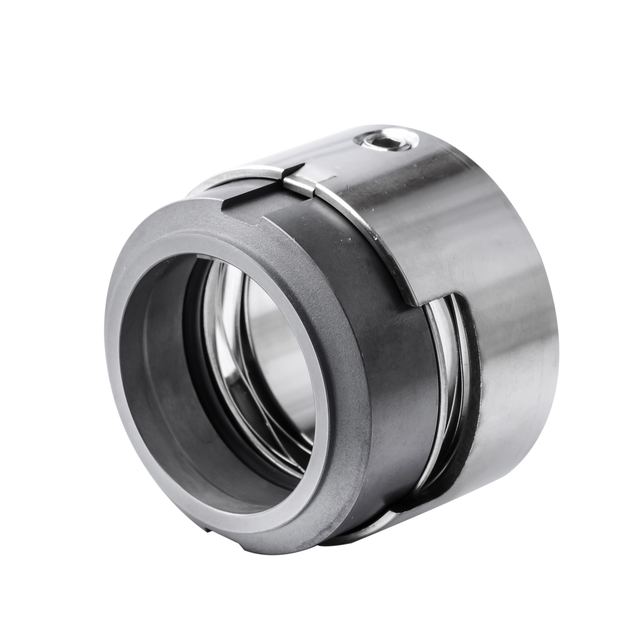

Mechanical Seal H7N-25 H7N-25/G9 25mm with G9 Seat SIC/SIC/VIT Compatible with Water Pump
Model H7N
Overview
Mechanical Seal H7N-25 H7N-25/G9 25mm with G9 Seat SIC/SIC/VIT Compatible with Water Pump supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification ISO9001; Material SIC SIC FKM; Function For Oil Pump, Water Pump; Certificate ISO9001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Material | SIC SIC FKM |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Type | For Mechanical Shaft Seal H7N |
| Style | Burgmann Type H7N O -ring Mechanical Seal |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 16 bar |
| Speed | Up to 20 m/s |
| End play/axial float allowance | ±0.1mm |
| Size | 14mm to 100mm |
| Face | Carbon, SiC, TC |
| Seat | Carbon, SiC, TC |
| Elastomer | NBR, EPDM, etc. |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Materials | Rotary face: Stainless steel/Carbon/Sic/TC |
| Seat Type | Standard SRS-S09, Alternative SRS-S04/S06/S92/S13 |
