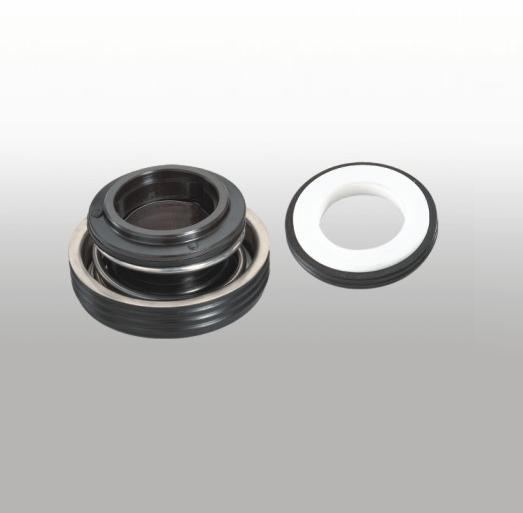

Mechanical Seal FT FT AutoMobile Seal For Vehicle Auto Cooling Water Pump
Model FT-20
Overview
Mechanical Seal FT FT AutoMobile Seal For Vehicle Auto Cooling Water Pump supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001 CE; Material Carbon/Ceramic/NBR; Function For Car Pump, Car Compressor; Certificate ISO9001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 CE |
|---|---|
| Material | Carbon/Ceramic/NBR |
| Function | For Car Pump, Car Compressor |
| Certificate | ISO9001 |
| Size | 10-30MM |
| Application | Auto Cooling Pump Seal |
| Temperature | -30℃ to 200℃, dependent on the elastomer |
| Pressure | Up to 10 bar |
| Speed | Up to 15 m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Seat | Ceramic, SiC, TC |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Car Model | Auto |
| Operating Limits | Pressure: ≤0.3MPa |
| Rotary Speed | ≤9000r/min |
| Medium | Clean water, seawater, |
| Performance Capabilities | Temperature |
| Auto Water Pump Seals Product Parameter | Product Name : Mechanical Seal |
| Internal Diameter | 20mm |
