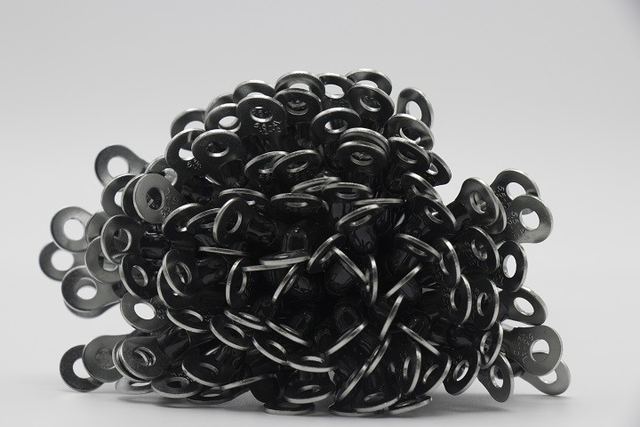

M5 NTC Thermistor-Probe Assembly with Ring Lug
Model MFP
Overview
M5 NTC Thermistor-Probe Assembly with Ring Lug supplied by Hefei Jingpu Sensor Technology Co., Ltd. Key published specifications: Certification ROHS; Rohs Compliant Yes; Operating Temperature Range -40 To 125°C; Supply Current 0.5 MA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ROHS |
|---|---|
| Rohs Compliant | Yes |
| Operating Temperature Range | -40 To 125°C |
| Supply Current | 0.5 MA |
| Resistance Range | 0.3kΩ To 2000kΩ |
| Wire | XLPE UL4484 26AWG 7/0.16TS OD1.05*2.2 |
| Material | Ceramic |
| Housing | Ring Lug M2/M4/M6/M8 |
| Mounting Type | Surface Mount |
| Encapsulation | Epoxy Resin Encapsulated |
| Output Type | Analog |
| Supply Voltage | 2.7 To 5.5 V |
| Power Consumption | 1.5mW |
| Insulation Resistance | ≥100MΩ 500VDC |
