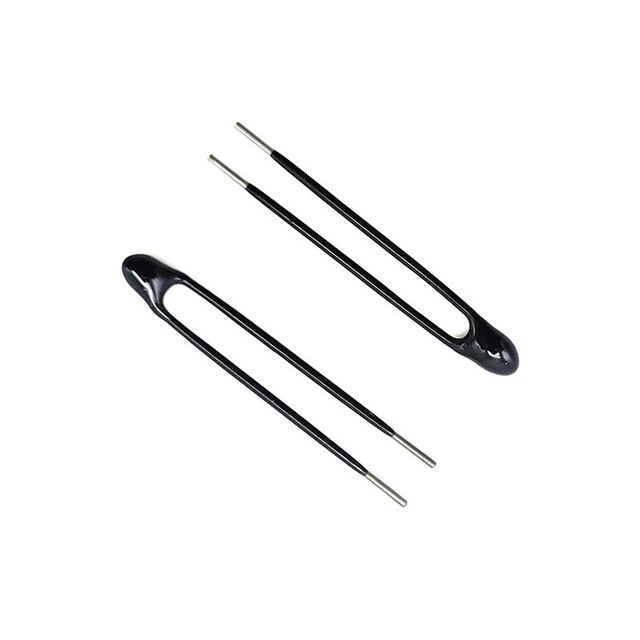

0.048KΩ 3810K Temperature Sensor
Model MF5A-3
Overview
0.048KΩ 3810K Temperature Sensor, listed under Temperature Sensors by Hefei Jingpu Sensor Technology Co., Ltd in Hefei, Anhui. Certification RoHS, ISO9001, resitance value R90℃=0.048KΩ±4% and bata value B25/85=3810K±1% are among the specifications published.
Technical specifications
| Certification | RoHS, ISO9001 |
|---|---|
| Resitance Value | R90℃=0.048KΩ±4% |
| Bata Value | B25/85=3810K±1% |
| Probe | Dropφ（3.0±0.5）*Max5.0, Black |
| Wire | CP/Sn φ0.5 P2.5 |
| Length | 25±1mm |
