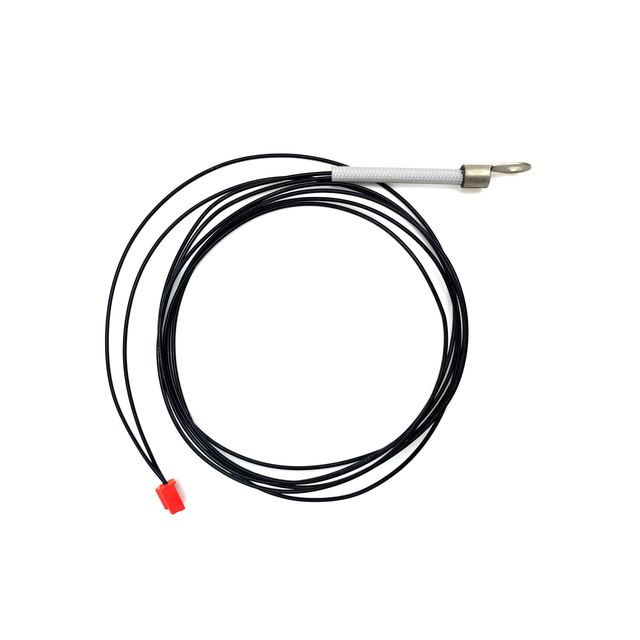

100k NTC Welding Machine Temperature Sensor
Model MFP
Overview
100k NTC Welding Machine Temperature Sensor supplied by Hefei Jingpu Sensor Technology Co., Ltd. Key published specifications: Certification RoHS, ISO9001; Resistance Value R25℃=10KΩ±5%; Beta Value B25/50=3950K±2%; Probe Cu/Sn RNB5.5-4L φ4.2-3.6*6. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | RoHS, ISO9001 |
|---|---|
| Resistance Value | R25℃=10KΩ±5% |
| Beta Value | B25/50=3950K±2% |
| Probe | Cu/Sn RNB5.5-4L φ4.2-3.6*6 |
| Wire | FEP UL1332 24AWG 7/0.2 OD1.25 Black |
| Length | 230mm |
| Connector | VH-3.96-3Y White |
