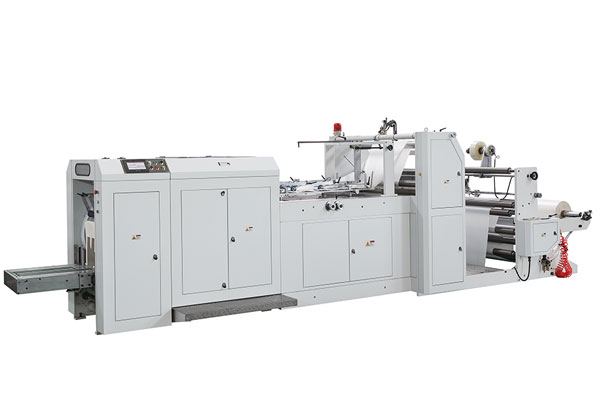

LSD-700B Automatic High Speed Paper Bag Machine
Overview
LSD-700B Automatic High Speed Paper Bag Machine supplied by Ruian Lilin Machinery Co., LTD. Listed under Other Printing Machines. Key published specifications: Type LSD-700B; Cutting Length（C） 170-710 mm; Bag Length（H） 160-700 mm; Bag Width（L） 80-350 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | LSD-700B |
|---|---|
| Cutting Length（C） | 170-710 mm |
| Bag Length（H） | 160-700 mm |
| Bag Width（L） | 80-350 mm |
| Gusset Depth（S） | 0-60 mm |
| Standard Flap（P） | 15-18 mm |
| Max.Speed | 600 pcs/min |
| Paper Thickness | 30-100 gsm |
| Paper Roll Width | 220-930 mm |
| Max.Roll Diameter | 1200 mm |
| Reel Inner Diameter | 76 mm |
| Pasted With Film | YES |
| Film Thickness | 0.03-0.05 mm |
| Film Width | 50-220 mm |
| The Max Film Diameter | 500 mm |
| Film Inner Diameter | 76 mm |
| Total Power | 13 kw |
| Weight of Machine | 5000 kg |
| Overall Dimension(LxWxH) | 6900×1800×1700 mm |
