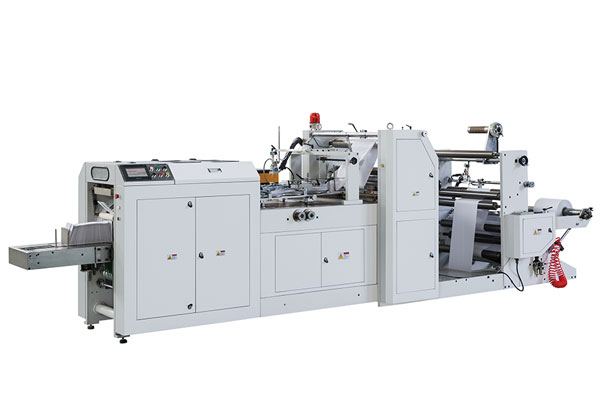

LSD-400B Automatic High Speed Paper Bag Machine
Overview
LSD-400B Automatic High Speed Paper Bag Machine supplied by Ruian Lilin Machinery Co., LTD. Listed under Other Printing Machines. Key published specifications: Type LSD-400B; Cutting Length（C） 100-410mm; Bag Length（H） 90-400 mm; Bag Width（L） 70-220 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | LSD-400B |
|---|---|
| Cutting Length（C） | 100-410mm |
| Bag Length（H） | 90-400 mm |
| Bag Width（L） | 70-220 mm |
| Gusset Depth（S） | 0-60 mm |
| Standard Flap（P） | 15-18 mm |
| Max.Speed | 700 pcs/min |
| Paper Thickness | 30-80 gsm |
| Paper Roll Width | 180-680 mm |
| Max.Roll Diameter | 1100 mm |
| Reel Inner Diameter | 76 mm |
| Pasted With Film | YES |
| Film Thickness | 0.03-0.05 mm |
| Film Width | 50-220 mm |
| The Max Film Diameter | 500 mm |
| Film Inner Diameter | 76 mm |
| Total Power | 10 kw |
| Weight of Machine | 3800 kg |
| Overall Dimension(LxWxH) | 5850×1400×1650 mm |
