Overview

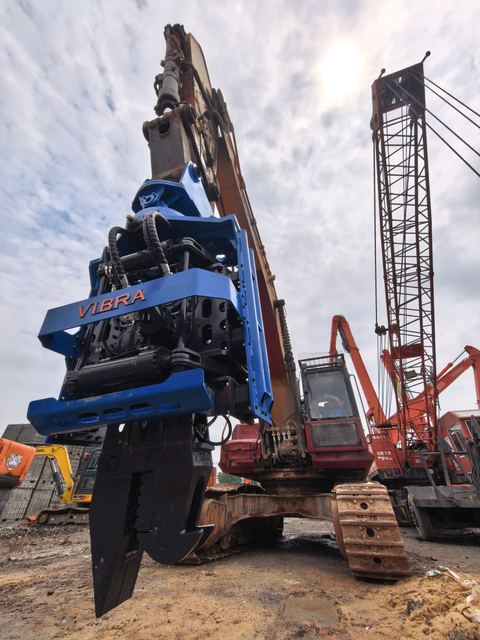

Low Headroom Operation Capability & Bidirectional Tilt Driving Head supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Model SV-500; Eccentric Moment 7.6 kgm; Centrifugal Force 772 kN. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO 9001:2015
Model	SV-500
Eccentric Moment	7.6 kgm
Centrifugal Force	772 kN
Frequency Range	2300 – 3100 r/min
Side Clamp Force	565 kN
Bottom Clamp Force	550 kN
Working Pressure	32 MPa
Working Flow	320 – 400 L/min
Dimensions (L×W×H)	1460 × 1395 × 3310 mm
Weight (incl. connector & clamp)	4050 kg
Applicable Excavator	40 – 50 tons
