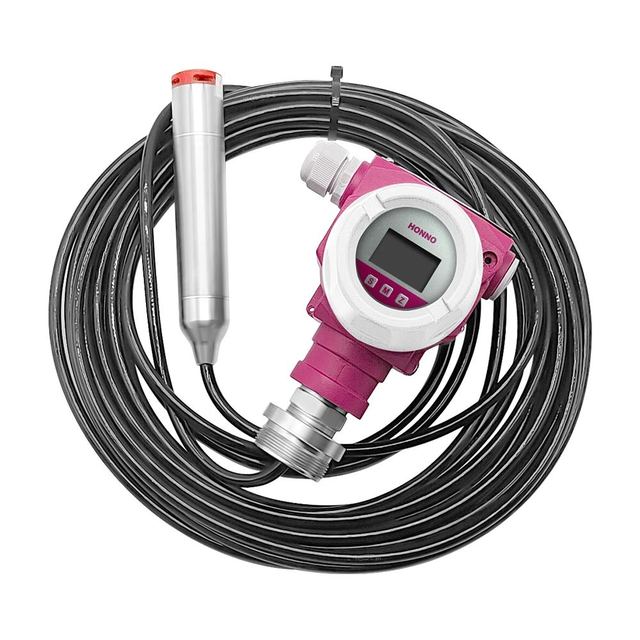

Liquid Level Sensor
Overview
Liquid Level Sensor supplied by Hongnuo (shenyang) General Machinery Co., Ltd. Listed under Level Sensors. Key published specifications: Range 0…1…200mH2O; Output signal 4…20mA;0.5…4.5VDC;0…10VDC;IIC;RS485;SDI-12; power supply 8…30V DC;5…8VDC;6VDC;24VDC;12VDC; Long term stability ≤ 0.2 ±% FS/year; ≤ 0.5 ±% FS/year. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Range | 0…1…200mH2O |
|---|---|
| Output signal | 4…20mA;0.5…4.5VDC;0…10VDC;IIC;RS485;SDI-12 |
| power supply | 8…30V DC;5…8VDC;6VDC;24VDC;12VDC |
| Long term stability | ≤ 0.2 ±% FS/year; ≤ 0.5 ±% FS/year |
| Response time | ＜1ms |
| Load resistance | R=(U-12.5)/0.02-RD |
| Measurement medium | Corrosive media compatible with 316L |
| Shell material | 304SS;316L;TC4;PTFE;PVDF |
| Electrical interface | Direct outgoing line |
| Protection level | IP68 |
| Explosion proof grade | Ex ia II CT6 optional |
