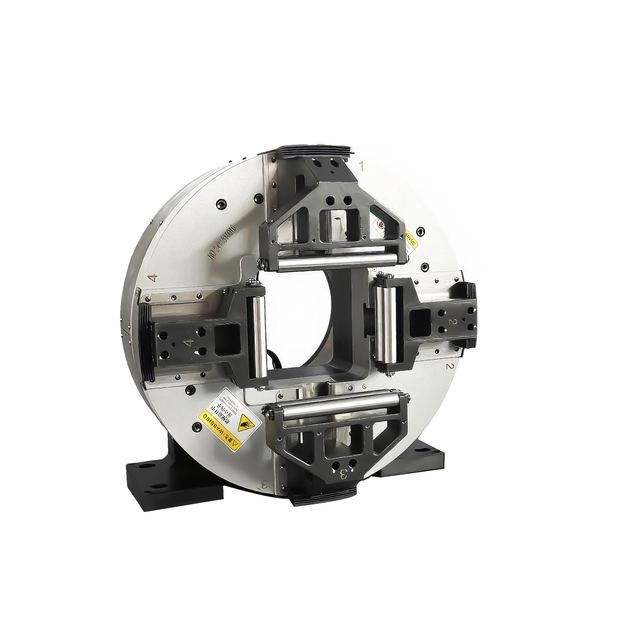

Lingman 175 Square-hole Full-range High Precision Laser Chuck for Heavy-duty Tubes in CNC Machines
Model F175DF
Overview
Lingman 175 Square-hole Full-range High Precision Laser Chuck for Heavy-duty Tubes in CNC Machines supplied by Lingman Machinery Technology (Changzhou) Co., Ltd. Listed under Chucks. Key published specifications: Center height 260MM; Clamping range 5-175MM; Suitable For Air Pressure 0.2-1MPa; The Total Weight Of The Machine 226KG. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Center height | 260MM |
|---|---|
| Clamping range | 5-175MM |
| Suitable For Air Pressure | 0.2-1MPa |
| The Total Weight Of The Machine | 226KG |
| Gear Parameters | Helical Gear With 10° Angle, M=2, Z1=63, Z2=189 |
