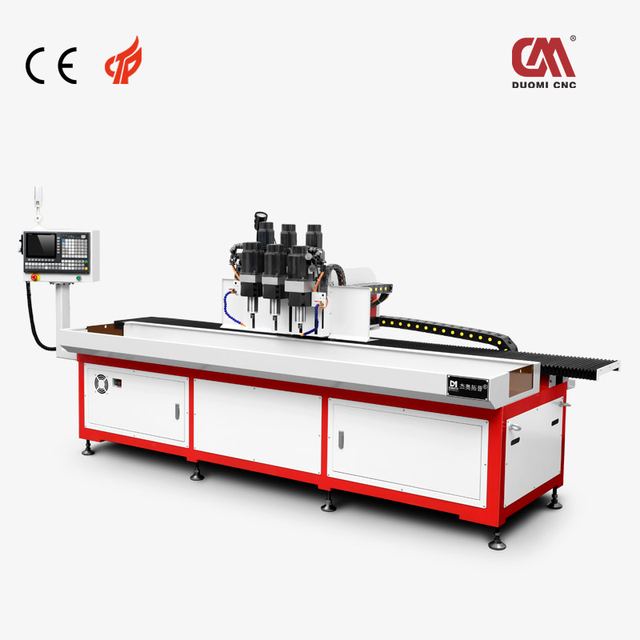

Deep Hole Drilling CNC Machine
Model DNC-1540N10
Overview
Deep Hole Drilling CNC Machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-1540N10; XYZ three-axis machining stroke0 X1500mm Y400mm Z200mm; Spindle taper hole ISO25; Spindle power 2.2~3.7KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-1540N10 |
|---|---|
| XYZ three-axis machining stroke0 | X1500mm Y400mm Z200mm |
| Spindle taper hole | ISO25 |
| Spindle power | 2.2~3.7KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~12mm |
| Tapping diameter range | M2~M8 |
| Chamfer diameter range | 1~12mm |
| Tool magazine | Automatic tool change (6~10 tools optional) |
| Repeated positioning accuracy | ±0.01mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 1500KG |
| Floor space | 2600*1500*1700mm |
| Depth-to-diameter ratio up to 20 | 1 or more. |
