Overview

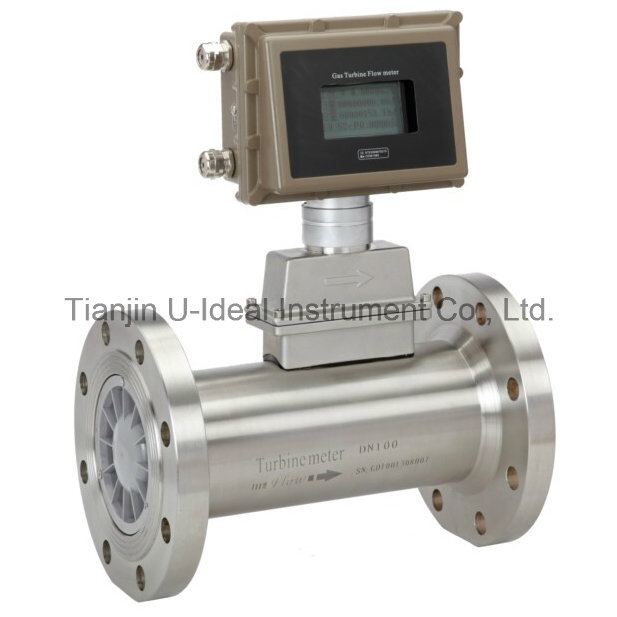

LCD Turbine Flow Meter supplied by Tianjin U-ideal Instrument Co., Ltd. Listed under Flow Meters. Key published specifications: Meter diameter and connection method 4,6,10,15,20,25,32,40 apply thread connection; Accuracy class ± 1%R ,±0.5%; Material 304 stainless steel,316(L)stainless steel and others; Fluid temperature -120~+ 12 0ºC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Meter diameter and connection method	4,6,10,15,20,25,32,40 apply thread connection
Accuracy class	± 1%R ,±0.5%
Material	304 stainless steel,316(L)stainless steel and others
Fluid temperature	-120~+ 12 0ºC
Environment	Temperature-10~+ 5 5ºC,relative humidity5%~90%,air pressure86~106Kpa
Output signal	Impulse signal,low leve l≤0.8V high level ≥8V
Power supply	+12VDC,+24VDC(selective)
Signal transmission line	STVPV30.3(Three line system)or 20.3(2-line system)
Transmission distant	≤ 1000m
Signal wire connection	Inner thread M20*1.5
Explosion proof class	ExdIIBT6
Protection class	IP65
Size	DN50-100
Type	Variable Area Flow Meter
Medium Temperature	-20~+120º C
Ambient Temperature	-20~+55º C
Standard	sgs, iso
Production Capacity	6000 PCS/Month
