Overview

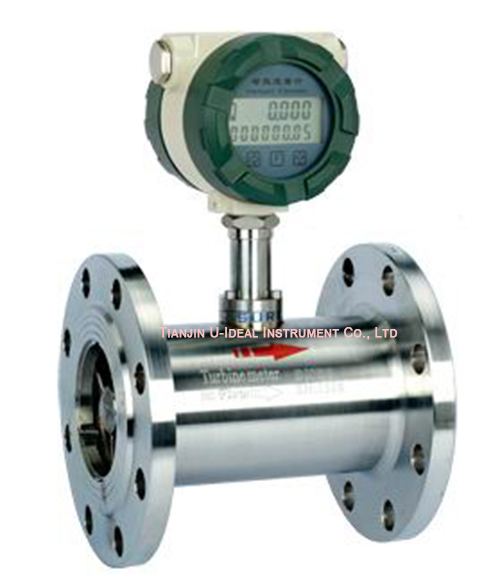

Intelligent Turbine Flow Meter supplied by Tianjin U-ideal Instrument Co., Ltd. Listed under Flow Meters. Key published specifications: Diameter and connection 4,6,10,15,20,25,32,40 thread connection; Accuracy ±1%R,±0.5%R,±0.2%R(Customer-made); Instrument material 304 Stainless Steel, 316L Stainless Steel, etc; Medium temperature -20°C——+110°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Diameter and connection	4,6,10,15,20,25,32,40 thread connection
Accuracy	±1%R,±0.5%R,±0.2%R(Customer-made)
Instrument material	304 Stainless Steel, 316L Stainless Steel, etc
Medium temperature	-20°C——+110°C
Power supply	Sensor: +12VDC,+24VDC(optional)
Signal transmission wire	STVPV3×0.3 ( three-wire), 2×0.3 (two-wire)
Transmission distance	≤1000m
Explosion class	Basic type: Non-explosion proof product, Explosion proof: ExdllBT6
Protection degree	IP65
Type	Variable Area Flow Meter
Housing Material	Ss304 or Ss316
Nominal Pressure	1.6 MPa ,2.5MPa ,4.0MPa ,6.3 MPa
Size	Dn50-100
Application	Industrial Production
Diameter	Dn4 to Dn200
Temperature	-10°C——+55°C, Relative humidity: 5%-90%, Atmospheric pressure: 86-106Kpa
Site display type	instrument with 3.2V lithium battery
Basic type	Hausmann interface, Explosion proof: Internal thread M20*1.5
